Product Details

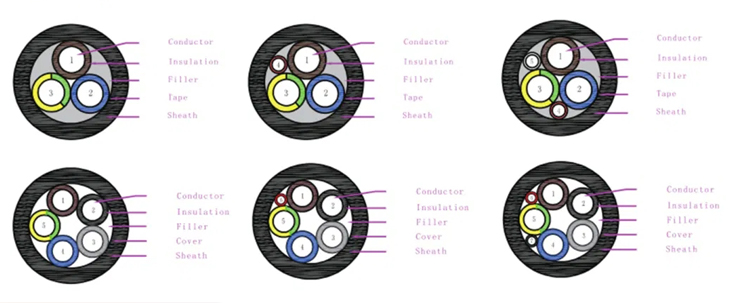

Construction	Features
1.Conductor	Rated temperature :-40ºC~90ºC
Material: Bare Copper	Rated Voltage : AC 300/500V, 450/750V;DC 1000V
2.Insulation	Flame Test :Testing method according to EN 60332-1-2
Material: EVI-2	Min: Bending Radius: ≥6*OD
Color: Brown,Blue,Yellow/Green	Dielectric Voltage: 2.5 kV AC for main core ,2.0 kV AC for CC/CP
3.Filler	Low temperature impact :-40ºC, No cracks
Material: PP Cord	Hot Shock:150ºC/1h No cracks
4.Tape	Oil Resistance :IRM902, 100ºC*168h Tensile Strength Variation <±40%, Elongation Variation<±30%
Material:Non-woven fabrics	Crush resistance:Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN;
5.Sheath	Resistance to Acid and alkali:168h, Tensile Strength Variation ≤30%; Elongation≥100%
Material: TPU	Environmental Requirements:Compliant with RoHS 2.0 and REACH

EN 50620, IEC62893 EV charging cable (Suitable for Type 2 and CCS2)

Reference Standard:EN 50620:2017,IEC62893-3:2017

Certificate No.:DEKRA 31-112985,DEKRA 31-111496,TUV R50436193 0001,TUV R50436194 0001

Product number	specification	Conductor twisted outer diameter	Conductor resistance	Reference allowable current	Unshielded Complete outer diameter	Cable packaging
H05BZ-F 62893ICE121	3×1.5mm2+(0~6)×(0.5~1.0)mm2	1.6	13.3	10A	8.6~9.6	800m/700#
H05BZ-F 62893ICE121	3×2.5mm2+(0~6)×(0.5~1.0)mm2	2.1	7.98	16A	9.8~10.8	800m/700#
H07BZ-F 62893ICE123	3×1.5mm2+(0~6)×(0.5~1.0)mm2	1.6	13.3	10A	8.8~9.6	800m/700#
	3×2.5mm2+(0~6)×(0.5~1.0)mm2	2.1	7.98	16A	10~10.8	800m/700#
	3×4.0mm2+(0~6)×(0.5~1.0)mm2	2.8	4.95	20A	11.5	500m/700#
	3×6.0mm2+(0~6)×(0.5~1.0)mm2	3.5	3.30	32A	13.2	400m/800#
	3×10.0mm2+(0~6)×(0.5~1.0)mm2	4.5	1.91	40A	16.3	500m/950#
	3×16mm2+(0~6)×(0.5~1.0)mm2	5.7	1.21	63A	19	500m/700#
	5×2.5mm2+(0~6)×(0.5~1.0)mm2	2.1	7.98	16A	13.5	500m/950#
	5×4.0mm2+(0~6)×(0.5~1.0)mm2	2.8	4.95	20A	15	400m/950#
	5×6.0mm2+(0~6)×(0.5~1.0)mm2	3.5	3.30	32A	16.8	300m/950#
	5×10.0mm2+(0~6)×(0.5~1.0)mm2	4.5	1.91	40A	20	300m/1200#
	5×16mm2+(0~6)×(0.5~1.0)mm2	5.7	1.21	63A	23.5	800m/700#
	5×25mm2+(0~6)×(0.5~1.0)mm2	7.2	0.78	80A	29	800m/700#
	5×35mm2+(0~6)×(0.5~1.0)mm2	8.4	0.554	125A	32.8	500m/700#
