PMMA 5-Year Warranty 60X60 40W 6500K IP40 IP54 Dmmable LED Panels

PMMA 5-Year Warranty 60X60 40W 6500K IP40 IP54 Dmmable LED Panels

Product Details

LM-PL-66-36, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product withultra-slim design,  elegant appearance, comfortable light, optical PMMA LGP and optical PC fire resistant diffuser.. It is very popular in the European market now.


Model

P66BS-36WH

Diffuser

PS

Power

40W

Net Weight

3.6KG

Size

595*595*9mm

Beam Angle

120 degree

Chip Size

26*46mil

Luminous Flux

3800lm-4100lm

Light Voltage

36V

Minimum Luminous Efficacy(lm/W)

100lm/W

Input Voltage

100-277VAC 50-60Hz(Limit:90-305V)

CRI

80Ra(optional:90Ra/95Ra)

Current

1A

SDCM

<7(optional:≤3)

Light Source

0.5W SMD2835(Optional:Samsung)

UGR

22

LED Source Quantity

240pcs

Warranty

3years

CCT

2700-6500K

Materials

aluminum&PMMA

LGP

PMMA

IP

40

Package

4.9kg/5pcs/Carton

Carton Size

68cm*63cm*3.5cm

Lifetime

50,000h

THD

<13%@230VAC


 Benefits

  (1) Longer lifetime than traditional light.
  (2) 80% Energy-saving over traditional light .
  (3) Minimum maintenance costs.
  (4) Quick and easy installation to minimize retrofit costs
  (5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and
  optical effects.

 Application

Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.

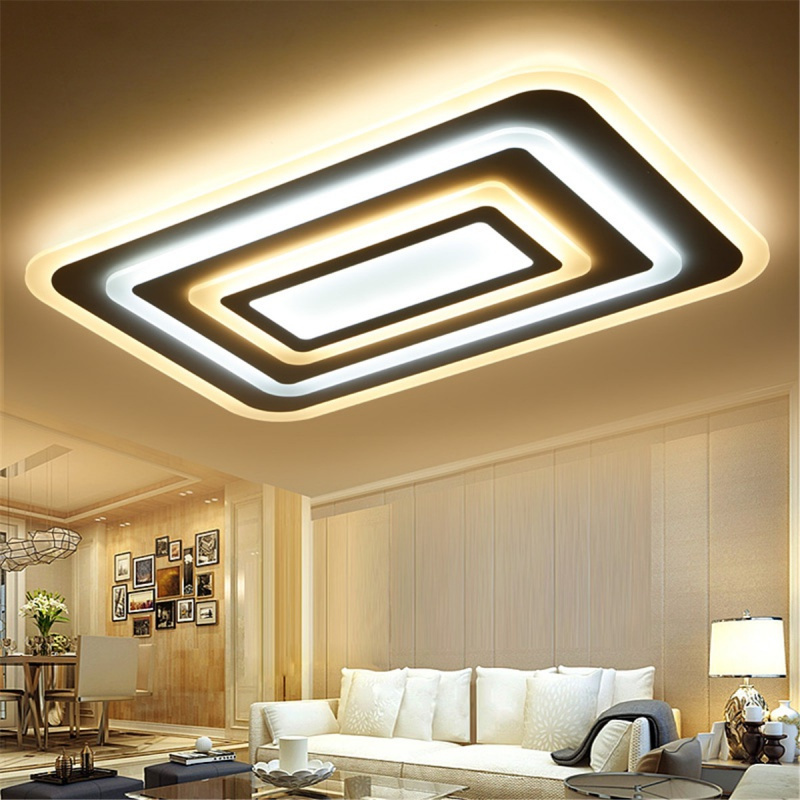

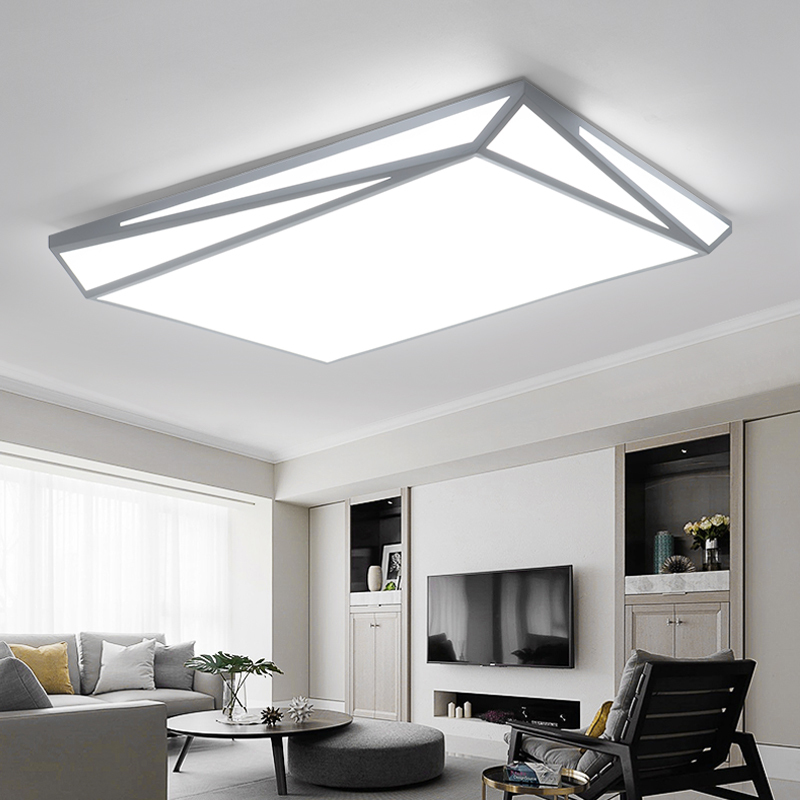

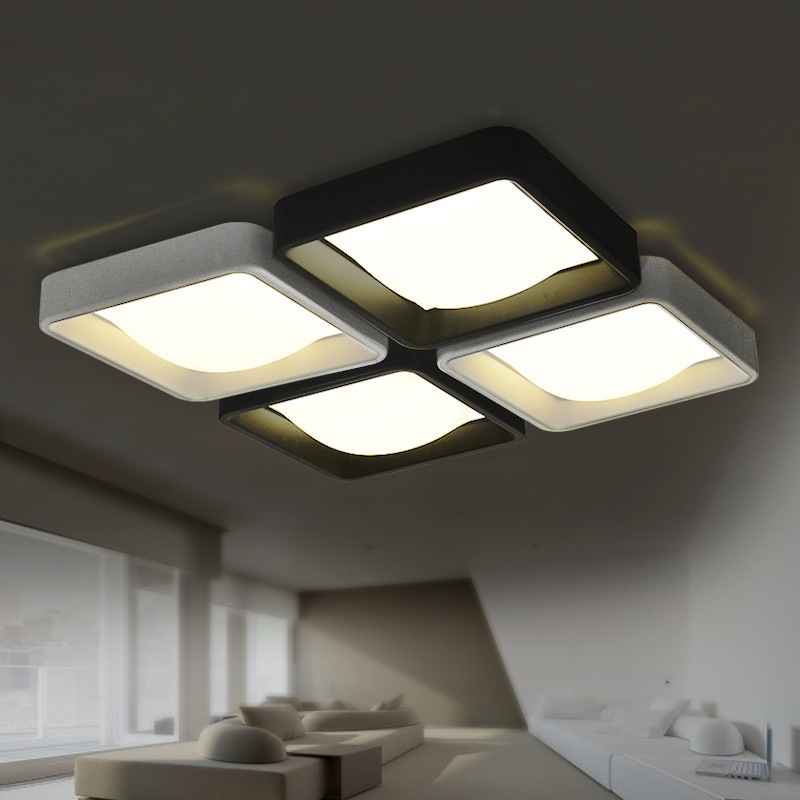

Photos
